INTERSECT - A nondestructive, time-stretching, and intersecting sample slicer

INTERSECT - A nondestructive, time-stretching, and intersecting sample slicer

I have just added a new plugin called INTERSECT. To my timlau/audio COPR repository.

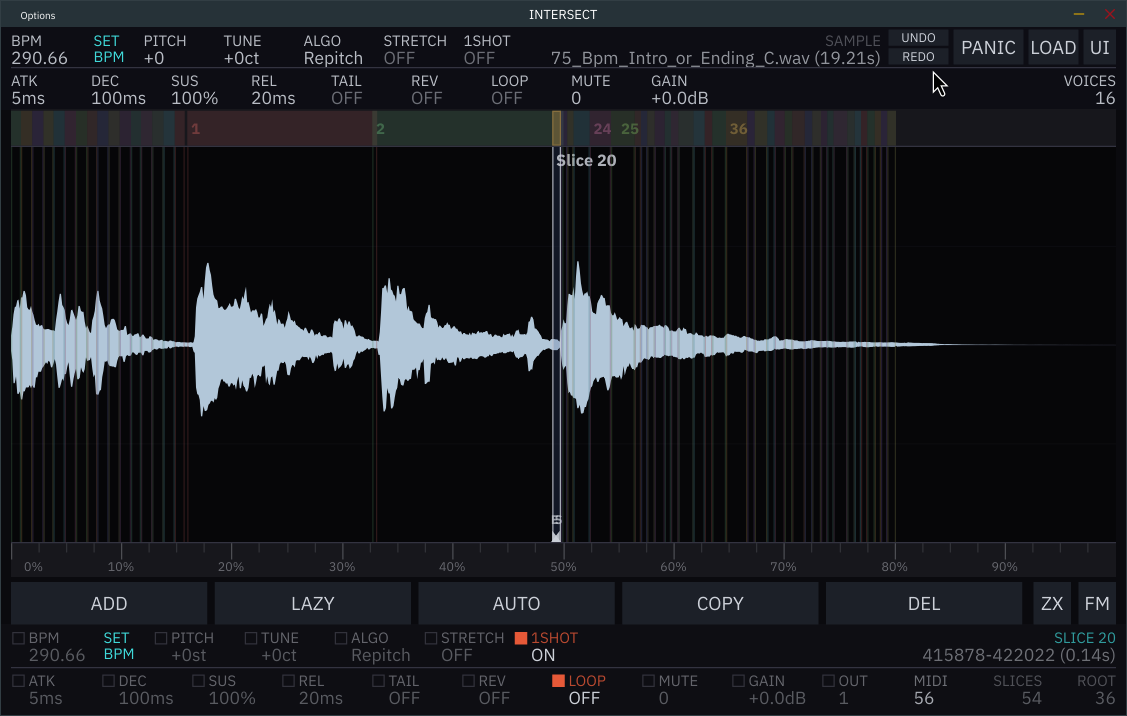

INTERSECT is a nondestructive, time-stretching, and intersecting sample slicer plugin with independent per-slice parameter control, per-slice locking, multiple time/pitch algorithms, and MIDI-triggered slice playback.

Check here for install instructions

Workflow Basics

  1. One sample at a time: INTERSECT loads one audio file per instance (.wav, .ogg, .aiff, .flac, .mp3).
  2. Slice creation: Draw slices manually, chop live with LAZY, or split via AUTO.
  3. Inheritance model: Header controls are sample defaults. Slice controls can lock overrides per field.
  4. Playback model: MIDI triggers slices by note mapping; mute groups can choke voices in the same group.
  5. Load behavior: File decoding/loading is asynchronous (off the audio thread).
  6. Algorithms:
    • Repitch: pitch and speed are linked.
    • Stretch: independent time/pitch via Signalsmith Stretch (TONAL, FMNT, FMNT C).
    • Bungee: granular stretch mode with GRAIN choices (Fast, Normal, Smooth).
  7. Repitch + Stretch interaction: when ALGO=Repitch and STRETCH=ON, PITCH/TUNE become BPM-driven read-only displays.
  8. SET BPM: compute BPM from selected slice length (or full sample context) against a musical duration.
  9. MIDI host stop handling: responds to All Notes Off (CC 123) and All Sound Off (CC 120).
  10. Undo/redo: snapshot-based history for slice and parameter edits.
